Quick Details

  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: HUAWEI
  • Model Number: MA5603
  • Product Name: Huawei MA5603 IP DSLAM with 384 Ports
  • Switching capacity of the backplane bus: 1.5 Tbit/s (H801MABO) 2 Tbit/s (H802MABO)
  • Switching capacity: SCUB: 48 Gbit/s /SCUF: 128 Gbit/s
  • System Layer 2 packet forwarding rate: SCUB: 72 Mpps /SCUF: 190 Mpps
  • BER in full load: BER of a port when the port transmits data in full load < 10 e-7
  • Number of ADSL2+ ports in a subrack: 384
  • Number of VDSL2 ports in a subrack: 384
  • Number of EFM SHDSL ports in a subrack: 192
  • Number of TDM SHDSL ports in a subrack: 96
  • Number of POTS ports in a subrack: 384

Packaging & Delivery

Packaging Details Original carton package.
Delivery Time Within 5 working days after the receipt of the payment

Huawei MA5603 IP DSLAM with 384 Ports

Product Positioning

The MA5603T is a series of integrated fiber-copper access device. It supports ADSL2+, VDSL2, SHDSL, POTS, GPON, 10G GPON, and P2P access modes and provide Internet access, voice, and video services to subscribers. As a series of large-/medium-/small-capacity devices, it shares the same software platform and service boards.







Application

The MA5603T is a series of large-/medium-/small-capacity devices that support integrated fiber-copper access and access-aggregation integration. Figure 1shows their application network.

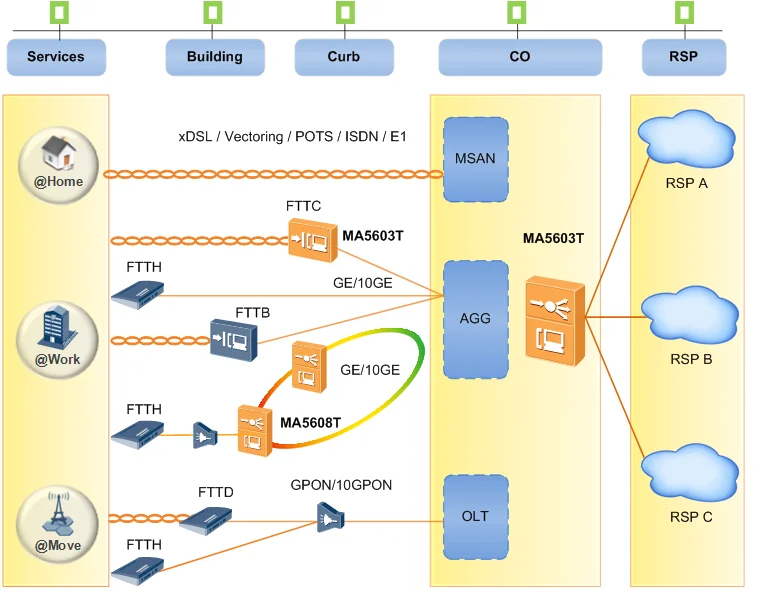

Figure 1 Application network

MA5603T

The MA5603T is an integrated fiber-copper access device, and can serve as a DSLAM, OLT, or MDU.

  • The MA5603T, if serving as an OLT, supports GPON and 10G GPON access modes. It can be installed at a residential district or a street side, which reduces the usage of ODN backbone optical cables, lowers the ODN deployment cost and difficulty, and minimizes the CO equipment room space.
  • The MA5603T, if serving as a DSLAM, supports ADSL2+, VDSL2, SHDSL, and POTS access modes.
  • The MA5603T, if serving as an MDU, supports ADSL2+, VDSL2, SHDSL, and POTS access modes and transmit packets upstream to the OLT through a GPON/10G GPON/GE/10 GE port.

Figure 2 shows the appearance of the MA5603T.

Figure 2 Appearance of the MA5603T configured with the xDSL boards

Specifications




Item

MA5603T

Supported cabinet

Indoor cabinet: N66E-18

Outdoor cabinet: F01D500, F01S300

Board configuration

2 slots for control boards

6 slots for service boards

1 slot for the universal interface board

2 slots for upstream interface boards

2 slots for power interface boards.

Switching capacity of the backplane bus

1.5 Tbit/s (H801MABO)

2 Tbit/s (H802MABO)

Supported control board and its switching capacity

SCUN: 480 Gbit/s in active/standby mode or 960 Gbit/s in load-sharing mode

SCUH: 960 Gbit/s in active/standby mode or 1920 Gbit/s in load-sharing mode

SCUB: 48 Gbit/s

SCUF: 128 Gbit/s

System Layer 2 packet forwarding rate

SCUN: 726 Mpps in active/standby mode or 1452 Mpps in load-sharing mode

SCUH: 1428 Mpps in active/standby mode or 2856 Mpps in load-sharing mode

SCUB: 72 Mpps

SCUF: 190 Mpps

Switching/Forwarding delay

Short forwarding delay: The 100 Mbit/s Ethernet port sends the 64-byte Ethernet packets at a delay shorter than 20 μs.

BER in full load

BER of a port when the port transmits data in full load < 10 e-7

System reliability specifications

System: redundant configuration.

System availability for the typical configuration: > 99.999%

Mean time between failures (MTBF): about 45 years.

NOTE:

Due to different network environments and different boards used by devices, the preceding MTBF (45 years) of theMA5600T/MA5603T/MA5608T is only for reference. The average repair time for field replaceable units (FRUs) is about 2 hours. The preceding values are only for reference. For details, contact the related Huawei engineers.

Maximum number of ADSL2+ ports in a subrack

384

Maximum number of VDSL2 ports in a subrack

384

Maximum number of EFM SHDSL ports in a subrack

192

Maximum number of TDM SHDSL ports in a subrack

96

Maximum number of POTS ports in a subrack

384

Maximum number of ISDN BRA ports in a subrack

192

Maximum number of ISDN PRA ports in a subrack

64

Maximum number of GPON ports in a subrack

96

Maximum number of 10G GPON ports in a subrack

48

Maximum number of P2P FE ports in a subrack

288

Maximum number of P2P GE ports in a subrack

288

Maximum number of upstream ports (GE ports in the GIU slot) in a subrack

8

Maximum number of upstream ports (10GE ports in the GIU slot) in a subrack

4

Maximum number of upstream ports (PON ports in the GIU slot) in a subrack

2

Maximum number of upstream ports (ports on the control board) in a subrack

SCUN/SCUK: 8 x GE (in the load-sharing mode)

SCUH: 8 x 10GE (in the load-sharing mode)

SCUB/SCUF: 4 x GE (in the active/standby mode)

Maximum number of extended subracks connected to a master subrack

32

Maximum number of ONUs supported by each subrack

  • For Layer 2 applications, the maximum number of ONUs supported by each subrack is determined based on the number of MAC addresses and service flows supported by the control board, as well as the number of MAC addresses and service flows planned for the ONUs.
  • For Layer 3 applications, the maximum number of ONUs supported by each subrack is determined based on the number of routes and ARP entries supported by the control board.

For details about specifications, see "Specifications" in each section of the Feature Guide.


Detailed Images



  MA5603T is an integrated fiber-copper access device, and can server as a DSLAM,OTL,or MDU.

MA5603T is 6U high and has 12 board slots







Appearance











Port and Module

xDSL Port

This topic describes the specifications and the standards compliance of xDSL (including ADSL2+, SHDSL, and VDSL2) ports.

Specifications of the ADSL2+ over POTS Port

Parameter

Specification

Transmission rate

Attainable upstream rate: 1.3 Mbit/s

Attainable downstream rate: 29 Mbit/s

Port type

Champ 64-pin, Delander 64-pin

Maximum transmission distance

6500 m

Cable type

Twisted pair

Frequency

Downstream: 138 kHz to 2.208 MHz

Upstream: 26 kHz to 138 kHz

Modulation

Discrete multitone (DMT)

Service supported

ADSL2+ over POTS

Frame protocol supported

ATM

Standards compliance

ITU-T G.992.1

ITU-T G.992.2

ITU-T G.992.3

ITU-T G.992.5

ANSI T1.413



Specifications of the ADSL2+ over ISDN Port

Parameter

Specification

Transmission rate

Attainable upstream rate: 1.3 Mbit/s

Attainable downstream rate: 27 Mbit/s

Port type

Champ 64-pin

Maximum transmission distance

4500 m

Cable type

Twisted pair

Frequency

Upstream: 26 kHz to 274 kHz

Downstream: 274 kHz to 2.208 MHz

Modulation

DMT

Service supported

ADSL2+ over ISDN

Frame protocol supported

ATM

Standards compliance

ITU-T G.992.1 Annex B

ITU-T G.992.3 Annex B/J

ITU-T G.992.5 Annex B/J

ETSI TS 101 388

Specifications of the SHDSL Port

Parameter

Specification

Transmission rate

192 kbit/s to 5696 kbit/s (symmetrical)

Port type

Champ 64-pin

Maximum transmission distance

3 km to 6 km

Cable type

Twisted pair

Rate adjustment step

64 kbit/s

Line coding

16TC-PAM, 32TC-PAM

Frame protocol supported

ATM, EFM

Standards compliance

ITU-T G.991.2 Annex B

ETSI TS 101 524

Specifications of the TDM SHDSL Port

Parameter

Specification

Transmission rate

192 kbit/s~2048 kbit/s(symmetrical)

Port type

Champ 64-pin

Maximum transmission distance

3 km to 6 km

Cable type

Twisted pair

Rate adjustment step

64 kbit/s

Line coding

16TC-PAM

Frame protocol supported

FE1 and V.35

Standards compliance

ITU-T G.991.2 Annex B And ITU-T G.991.2 Annex A

ETSI TS 101 524

Specifications of the VDSL2 over POTS Port

Parameter

Specification

Transmission rate

Attainable upstream rate: 40 Mbit/s

Attainable downstream rate: 80 Mbit/s

Port type

Champ 64-pin, Delander 64-pin

Maximum transmission distance

3500 m (U0 enable)

Cable type

Twisted pair

Modulation

DMT

Service supported

VDSL2 over POTS

Frame protocol supported

PTM

Standard compliance

ITU-T G.993.2

Specifications of the VDSL2 over ISDN Port

Parameter

Specification

Transmission rate

Attainable upstream rate: 40 Mbit/s

Attainable downstream rate: 80 Mbit/s

Port type

Champ 64-pin

Maximum transmission distance

3500 m (U0 enable)

Cable type

Twisted pair

Modulation

DMT

Service supported

VDSL2 over ISDN

Standard compliance

ITU-T G.993.2
