Quick Details

  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: HUAWEI
  • Model Number: MA5616
  • Name: HUAWEI MA5616 MIni Fiber Optic Tester DSLAM with ADSL2+ VDSL SHDSL
  • GPON: 128 GEM ports
  • Broadband: 4K VLANs, supporting QinQ and stacking VLANs
  • Voice: SIP and H.248
  • ADSL2+: ADSL2+ bonding (2-wire, 4-wire, 6-wire, or 8-wire)
  • VDSL2: 2-wire VDSL2 bonding
  • SHDSL: EFM bonding (2-wire, 4-wire, 6-wire, or 8-wire)
  • Multicast: IGMPv2 and IGMPv3
  • Key words: MA5616, ADSL,DSLAM,VDSL,POTS,IP DSLAM
  • IP DSLAM: MINI DSLAM

Packaging & Delivery

Packaging Details Original carton package.
Delivery Time Within 5 working days after the receipt of the payment

HUAWEI MA5616 MIni Fiber Optic Tester DSLAM with ADSL2+ VDSL SHDSL

Application







MA5616 (CCUB control board)









MA5616 (CCUC control board)



The MA5616 provides the following user ports: asymmetric digital subscriber line 2 plus (ADSL2+), very-high-speed digital subscriber line 2 (VDSL2), single-pair high-speed digital subscriber line (SHDSL), plain old telephone service (POTS), integrated services digital network (ISDN) and fast Ethernet/gigabit Ethernet (FE/GE). The MA5616 provides GPON/10G GPON/EPON/GE upstream transmission modes and can be used in fiber to the building (FTTB), fiber to the curb (FTTC), and dedicated line access scenarios. The MA5616 can also be used as a mini digital subscriber line access multiplexer (DSLAM) or a multiservice access node (MSAN) to provide voice, data, and video services. Figure 1 shows the position of the MA5616 in three typical networking scenarios.

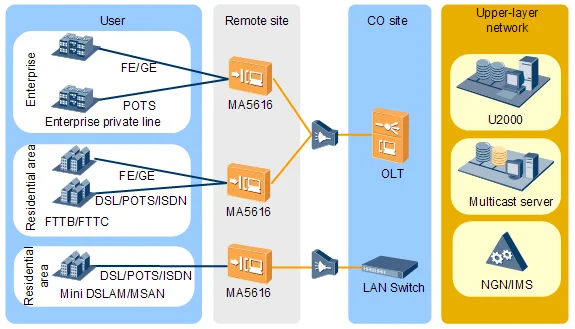

Figure 1 Position of the MA5616 on the network



DSL: digital subscriber line

FE: fast Ethernet

GE: gigabit Ethernet

IMS: IP multimedia subsystem

LAN: local area network

NGN: next generation network

OLT: optical line terminal

POTS: plain old telephone service



Table 1 Typical networking scenarios


Networking Scenario

Description

FTTB (C)

The MA5616 can be used in FTTB and FTTC scenarios to provide voice, data, and video services for residential area users.

Enterprise private line access

Functioning as a single business unit (SBU), the MA5616 provides broadband and plain old telephone service (POTS) access services.

Mini DSLAM/MSAN

The MA5616 can function as a traditional mini DSLAM or MSAN to provide traditional voice, data, and video services.

Features



This topic describes the features of the MA5616.

Supporting 10G GPON Upstream Transmission

  • 10G gigabit-capable passive optical network (GPON), a next-generation PON standard defined by International Telecommunication Union - Telecommunication Standardization Sector (ITU-T), supports the upstream transmission rate 2.5 Gbit/s and downstream transmission rate 10 Gbit/s, which can meet users' requirements for high bandwidth services.
  • 10G GPON networks can coexist with the current PON networks to fully use the existing optical distribution network (ODN) resources.

Vectoring Broadband Service Speedup

The MA5616 supports the vectoring function to expand VDSL2 bandwidth for VDSL2 line acceleration. Using VDSL2, users can access networks at a high speed and use diversified services, for example, HD videos, to obtain better user experience.

Flexible Configurations

The MA5616 supports four service slots, mixed insertion of any service boards, and flexible configuration of each port type, increasing the actual installation rate and meeting diversified customer demands. For details about the flexible configuration, see Hardware Configuration.

Combo Boards and P2P Board

The MA5616 has a combo board design for supporting high-density user access requirements. Combo boards reduce carriers' construction expenditure, deployment space, wire setting workload, occupation of the main distribution frame (MDF), and maintenance costs.

The P2P board design meets P2P access requirements for enterprise users and VIP users.

Operational Video Service

The MA5616 uses Internet Group Management Protocol version 2 (IGMPv2) or IGMPv3 to provide IPTV, HDTV, and video conferencing services.

IPv6

The IPv6 feature relieves IP address shortages and is simple to deploy, facilitating smooth service migration from IPv4 networks to IPv6 networks. In addition, IPv6 networks can coexist with IPv4 networks.

Various Voice Services

The MA5616 provides the following voice services and technologies:

  • POTS, fax, modem, and ISDN services
  • Virtual access gateways (VAGs) that meet requirements of wholesale services or user group-based service management. In addition, the VAGs resolve capacity expansion issues caused by IMS or softswitch capacity limitations.
  • Optimized SIP ISDN solution that supports BRA, enterprise private line services, ISDN basic call, fax and modem data services, and ISDN value-added services.
  • Voice quality enhanced (VQE) technology that improves the voice quality and user experience
  • Dual homing and local switching that improve the voice service reliability
  • TDM G.SHDSL access that enables new networks to support existing services without replacing user terminals and affecting user experience.

Highly Effective Management and Maintenance Capabilities

  • Plug and play, offline deployment, and onsite software-commissioning-free
  • Remote fault locating, troubleshooting, and batch upgrade

Carrier-Class Reliability Design

  • Complying with carrier-class reliability specifications
  • Having passed the electrostatic discharge (ESD) test.
  • Protecting user ports, 4 kV in both common and differential modes for DSL, POTS, and ISDN ports.
  • Protecting power:
    • For DC power input: 4 kV in common mode and 2 kV in differential mode
    • For AC power input: 6 kV in both common and differential modes
Detailed Images

  Appearance and structure of the MA5616 (AC-powered, configured with CCUB control board)







Appearance and structure of the MA5616 (AC-powered, configured with CCUC control board)





Appearance and structure of the MA5616 (AC-powered, configured with CCUDG control board)






Features

CCUB control board

CCUC control board

GPON

ITU G.984-compliance

ITU G.984-compliance

8 T-CONTs

32 T-CONTs

128 GEM ports

1000 GEM ports

Broadband

4K VLANs, supporting  QinQ and stacking VLANs

4K VLANs, supporting  QinQ and stacking VLANs

4K MAC addresses, supporting  VMAC

4K MAC addresses, supporting  VMAC

VLAN switching

VLAN switching

Conversion from PPPoA to PPPoE and  from IPoA to IPoE

Conversion from PPPoA to PPPoE and  from IPoA to IPoE

802.1p, supporting PQ and WRR flow control, and ACL

802.1p, supporting PQ and WRR flow control, and ACL

Voice

SIP and  H.248

SIP and  H.248

ISDN BRA port

ISDN BRA port

POTS short-loop design

POTS short-loop design

ADSL2+

Compliance with ITU-T G992.1 to G992.5, and T1.413

Compliance with ITU-T G992.1 to G992.5, and T1.413

Annex M

Annex M

ADSL2+ bonding  (2-wire, 4-wire,  6-wire,  or 8-wire)

ADSL2+ bonding  (2-wire, 4-wire,  6-wire,  or 8-wire)

VDSL2

G993.2-compliance

G993.2-compliance

8a, 8b, 8c, 8d, 12a, 12b, 17a, and 30a profiles

8a, 8b, 8c, 8d, 12a, 12b, 17a, and 30a profiles

2-wire  VDSL2 bonding

2-wire  VDSL2 bonding

SHDSL

G991.2-compliance

G991.2-compliance

G.SHDSL.Bis, supporting ATM and PTM

G.SHDSL.Bis, supporting ATM and PTM

EFM bonding  (2-wire,  4-wire,  6-wire,  or 8-wire)

EFM bonding  (2-wire,  4-wire,  6-wire,  or 8-wire)

Multicast

IGMPv2 and IGMPv3

IGMPv2 and IGMPv3

IGMP proxy and IGMP snooping

IGMP proxy and IGMP snooping

A maximum of 1024 configurable multicast programs in

the system

A maximum of 256 multicast users

A maximum of 16 concurrent multicast programs for

each user

A maximum of 1024 configurable multicast programs in

the system

A maximum of 256 multicast users

A maximum of 16 concurrent multicast programs for

each user

Security

PPPoE+ and  DHCP option82

PPPoE+ and  DHCP option82

Staticand dynamic MAC address binding

Staticand dynamic MAC address binding

Anti-MAC and anti-IP spoofing; source MAC address and

IP address filtering

Anti-MAC and anti-IP spoofing; source MAC address and

IP address filtering

Anti-DoS attack and firewall

Anti-DoS attack and firewall

Maintenance and management

SNMPv1, SNMPv2, and SNMPv3

SNMPv1, SNMPv2, and SNMPv3

Telnet and SSHv2

Telnet and SSHv2

Remote and batch pre-deployment

Remote and batch pre-deployment

Remote upgrade and monitoring

Remote upgrade and monitoring



Specification



Dimensions



88.1mm×442mm×245mm

88.1mm×442mm×245mm

Network-side port

The MA5616 supports the following configurations:

• 1*GPON + 1*GE

• 2*GE

The MA5616 supports the following configurations:

• 1*GPON + 1*GE

• 2*GE

User-side port

The MA5616 provides four slots and the following 10 service boards:

• 24-channel  VDSL2 board (17a, over POTS, built-in  SPL)

• 24-channel VDSL2 board (17a, over POTS, external SPL)

• 24-channel VDSL2 board (17a, over ISDN, external SPL)

• 16-channel  VDSL2 board (30a, over POTS, built-in  SPL)

• 32-channel  ADSL2+ board (built-in  SPL)

• 32-channel combo board (32 × POTS + 32 × ADSL2+)

• 64-channel POTS board

• 32-channel POTS board

• 8-channel ISDN board

• 16-channel G.SHDSL board (supporting ATM and PTM)

The MA5616 provides four slots and the following 13 service boards:

• 24-channel  VDSL2 board (17a, over POTS, built-in  SPL)

• 24-channel VDSL2 board (17a, over POTS, external SPL)

• 24-channel VDSL2 board (17a, over ISDN, external SPL)

• 16-channel  VDSL2 board (30a, over POTS, built-in  SPL)

• 32-channel  ADSL2+ board (built-in  SPL)

• 32-channel combo board (32 × POTS + 32 × ADSL2+)

• 64-channel POTS board

• 32-channel POTS board

• 8-channel ISDN board

• 16-channel G.SHDSL board (supporting ATM and PTM)

• 16-channel FE (electrical) board

• P2P board  with 4 GE (combo  of optical port and electrical port) + 4 FE (optical port)

• 48-channel VDSL2 board (17a, over POTS, external SPL,

supporting MELT)

Operating temperature

-40oC to 65oC; startup at -25oC

-40oC to 65oC; startup at -25oC

Humidity

5% to 95% (non-condensing)

5% to 95% (non-condensing)

Heat dissipation mode

Providing fans for heat dissipation. The rotating speed can be automatically adjusted.

Providing fans for heat dissipation. The rotating speed can be automatically adjusted.

Power supply

AC: 220 V/110 V DC: -48 V

AC: 220 V/110 V DC: -48 V

Backup power

Support for 48-V backup power

Support for lead-acid  batteries  and LiFePO4 batteries

Support for 48-V backup power

Support for lead-acid  batteries  and LiFePO4 batteries

Weight

4.8 kg (empty chassis)

7.2 kg (full configuration)

4.8 kg (empty chassis)

7.2 kg (full configuration)



Device Performance



This topic describes the performance of the MA5616.



Performance Parameter

Description

CCUB

CCUC

CCUE (Upstream Transmission through Two GPON Uplink Ports)

System packet forwarding rate

x digital subscriber line (xDSL) access: 15.6 Mpps

xDSL access: 15.6 Mpps

xDSL access: 51 Mpps

LAN access/P2P configuration: 30 Mpps

LAN access/P2P configuration: 51 Mpps

Control board switching capacity

10.4 Gbit/s

20 Gbit/s

28 Gbit/s

System switching capacity

xDSL access: 10.4 Gbit/s

xDSL access: 10.4 Gbit/s

xDSL access: 28 Gbit/s

LAN access/P2P configuration: 20 Gbit/s

LAN access/P2P configuration: 28 Gbit/s

Switching capacity on the backplane bus

3GE bus: 30 Gbit/s

3GE bus: 30 Gbit/s

MABA backplane: 30 Gbit/s

Universal test and operations PHY interface for ATM (UTOPIA) bus: 6.4 Gbit/s

Universal test and operations PHY interface for ATM (UTOPIA) bus: 6.4 Gbit/s

MABB backplane (vectoring): 110 Gbit/s
